Weil McLain Heating Boilers

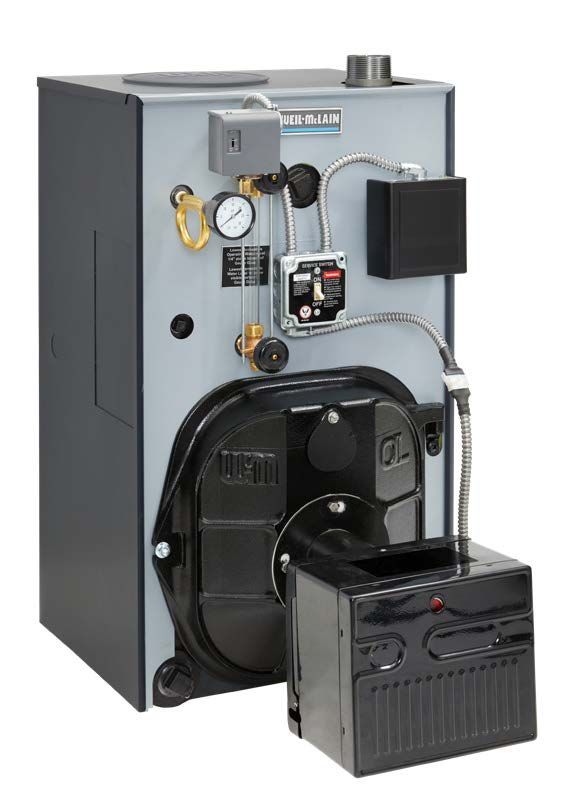

HIGH EFFICIENCY CAST IRON STEAM BOILER SGO

APPLICATIONS INCLUDE:

• Residential
• Light Commercial
• Multiple Boilers
• Indirect-fired Water Heating
• Radiant Heating

STANDARD EQUIPMENT:

BOILER

• Factory tested and assembled cast iron section assembly
• Insulated steel jacket
• Aluminized steel flue collector hood with flue cap on top outlet (convertible to rear outlet)
• Swing-away burner mounting door
• Refractory blanket and target wall in combustion area
• Tankless heater opening cover plate
• Electrical junction box with wiring harnesses
• Junction box cover plate with service switch
• Two vent pipe brackets
• Drain valve
• Barometric damper
• Oil vent damper
• High limit pressure control
• Low water cutoff; Packaged units only
• 15 PSI ASME relief valve
• Steam pressure gauge
• Siphon
• Gauge glass, cocks and guard

OPTIONAL EQUIPMENT:

• High-efficiency flame-retention Oil Burner (Beckett AFG, Carlin EZ or Riello). Specify 2-stage fuel unit (optional, Beckett) if required.
• Tankless heaters and controls
• Low water cutoffs
• Weil-McLain five- and ten-year homeowner protection plan
• Weil-McLain indirect-fired water heaters

LIMITED TRANSFERABLE WARRANTY:

• Residential: 10 Years Heat Exchanger; 2 Years Parts
• Commercial: 10 Years Heat Exchanger;
• 1 Year Parts

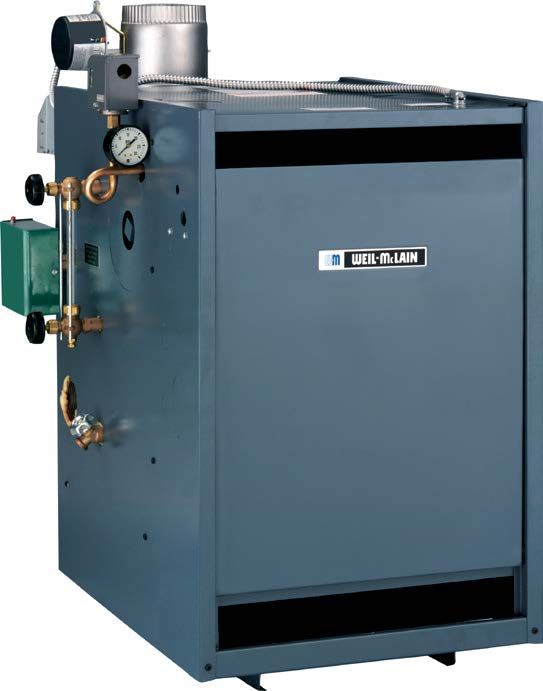

HIGH-EFFICIENCY CAST IRON BOILER EG

Order PEG* for factory assembled and tested packaged boiler (steam only, sizes 30 through 65). Optional tankless heater coils available for domestic hot water applications—EG tankless opening blocks only.

STANDARD EQUIPMENT:

BOILER

• Factory-assembled section block
• Insulated extended jacket
• Horizontal to vertical draft hood
• Automatic vent damper (additional for EG-75)
• Combination gas valve for 24 volt
• Non-linting pilot burner
• Stainless steel burners
• Electrical junction box
• Spill switch
• Rollout thermal fuse element

WATER BOILERS ONLY

• Built-in-air separator
• 30 PSI ASME relief valve (boiler sections tested for 50 PSI working pressure)
• Combination pressure-temperature gauge
• High-limit control
• Intermittent electronic ignition system with Weil-McLain UCM universal ignition control module (with tankless only)
• Intermittent electronic ignition system with indicator/diagnostic lights, and integrated low-water cutoff with test button (without tankless only)
• 40 VA transformer
• Plug-in connector and wiring

STEAM BOILERS ONLY:

• 15 PSI ASME relief valve
• High-limit pressure control
• Low water cutoff-electrode type
• 40 VA transformer
• Steam pressure gauge
• Siphon
• Gauge cocks and glass
• Intermittent electronic ignition system with Weil-McLain UCM universal ignition control module

OPTIONAL EQUIPMENT:

• Packaged steam boilers—factory assembled and tested (P-EG-30 through 65 only)
• Left end section with openings for tankless heaters
• Tankless heaters, heater cover plates, and controls
• Automatic vent damper for EG-75 with electronic ignition
• Outdoor reset kit (for water boilers without tankless only, part #381-356-586) Low cost, simple plug-in sensor-check local utility program for possible rebate.

LIMITED TRANSFERABLE WARRANTY:

Residential—water: 20 Years Heat Exchanger; 2 Years Parts

Residential—steam: 10 Years Heat Exchanger; 2 Years Parts

Commercial: 10 Years Heat Exchanger; 1 Years Parts
