P-K Hydronic Boilers

Suitable for new construction or replacement projects, hydronic boilers from Patterson-Kelley are small in size, but big on output.

Condensing Boilers

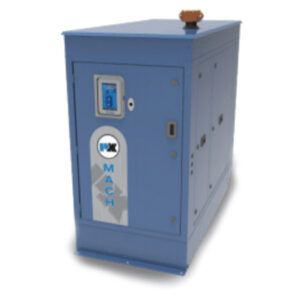

MACH®*

  • 300 – 4000 MBTU
  • Fuel Options: Natural Gas (NG), Liquid Propane (LP), Dual Fuel
  • All-purpose boiler suitable for condensing and non-condensing systems
  • Cast Aluminum Heat exchanger resists corrosive condensate
  • Compact design fits through a standard 36” doorway
  • Full modulation burner with 5:1 turndown
    • 10:1 Mechanical turndown available on Indoor Natural Gas (NG) models C750, C900, C1050, C1500, C2000

AHRI Certified Up to 95% efficiency

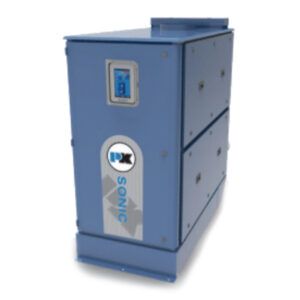

SONIC®*

Domestic Hot Water option available

  • 650 – 4000 MBTU
  • Fuel Options: Natural Gas (NG), Liquid Propane (LP), Dual Fuel
  • Unique stainless alloys resist corrosive condensation
  • Compact design fits through a standard 36” doorway
  • Full modulation burner with up to 7:1 turndown
  • Front accessibility reduces repair and maintenance costs

AHRI Certified Up to 97% efficiency

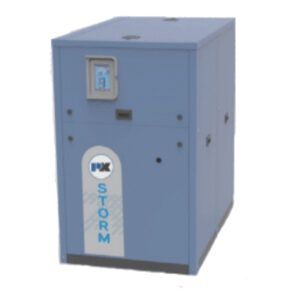

STORM®*

  • 1250 – 4000 MBTU
  • Fuel Options: Natural Gas (NG)Unique stainless alloys resist corrosive condensation
  • Full modulation burner with up to 10:1 mechanical turndown
  • Front accessibility reduces repair and maintenance costs
  • Outdoor Capabilities on models 1250 – 2000
  • Cabinet and heat exchanger design reduce repair and maintenance costs

AHRI Certified Up to 97% efficiency

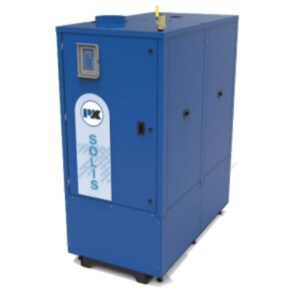

SOLIS®*

  • 1500 – 3000 MBTU
  • Fuel Options: Natural Gas (NG)
  • Vertical firetube condensing boiler
  • Full modulation burner with up to 10:1 mechanical turndown
  • Ultra low NOx emissions
  • Up to 96% thermal efficiency
  • 316 SS Tube and tube sheet with a 304 SS heat exchanger shell

AHRI Certified Up to 96% efficiency

P-K Water Heaters

Designed with savings in mind, P-K high-efficiency water heaters maximize floor space and reduce fuel costs, providing reliable performance year after year.

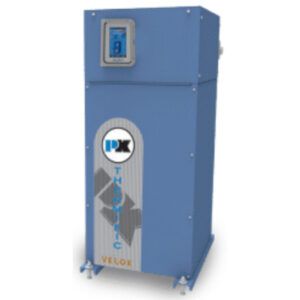

THERMIFIC VELOX®*

Domestic Hot Water option available

  • 750 – 2000 MBTU
  • Venting: Category I
  • Sealed combustion design eliminates large air louvers and permits boiler installation in a negative pressure environment

AHRI Certified Up to 88% efficiency

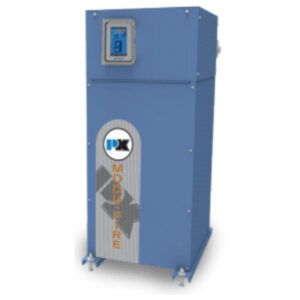

MODU-FIRE Forced Draft®*

Domestic Hot Water option available

  • 750 – 3000 MBTU
  • Venting: Category II or IV
  • Eliminates short cycling in high variable speed pumping systems

AHRI Certified Up to 88% efficiency

Instantaneous Condensing Hot Water Heater

HiDRA TM*

  • Size Range up to 1000 MBTU
  • Instantaneous condensing hot water heater with HLW Stamp
  • Continuously circulating flow for consistent hot water output
  • Anticipated temperature control to rapidly respond to varying flow conditions
  • 5:1 Turndown

AHRI Certified Up to 97% efficiency

Indirect Fired Water Heaters

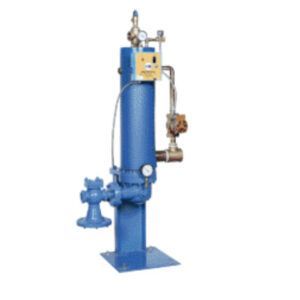

COMPACT®*

  • Recovery Rates (40°F – 140°F) — 6 – 425 GPM
  • Constant circulation by the pump improves temperature control and minimizes scale
  • ANTICIPATOR® temperature control regulates hot water outlet temperatures ±4°F
  • Performs equally well with steam or high temperature boiler water
  • High-output heater that can be configured horizontally or vertically

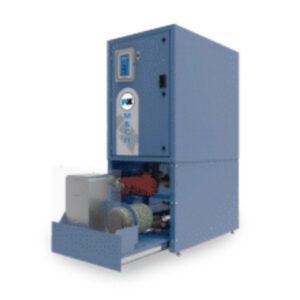

MACH®‘n’ Roll®*

  • 300 – 1050 MBTU
  • Recovery Rates at 60°F ΔT — 18 – 66 GPM
  • Domestic hot water and comfort heat combined in a compact easy to maintain design
  • Ideal for retrofitting old buildings
  • Uses lower approach temperatures to produce domestic hot water and inhibit scale formation, thus increasing efficiency

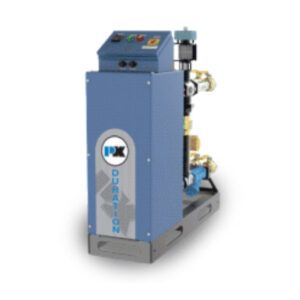

DURATIONTM III®*

  • 0 – 85 GPM Domestic Water Demand
  • High-quality stainless steel brazed plate heat exchanger
  • Specifically engineered to complement any condensing source
  • Footprint is less than 5.5 ft2

NURO®

Touch-Screen Control System

Developed in-house and equipped with the latest in boiler control technology, theNURO® Touch-Screen Control System is designed with efficiency in mind. The NURO®monitors and modulates the combustion and ignition of the boiler to maintain the desired outlet temperature, minimizing the efficiency gap between the boiler and the system. Should issues arise, system diagnostics pinpoints and troubleshoots errors, producing operation solutions and common repair suggestions.
