IBC SL Series Boiler
IBC SL Series Boiler

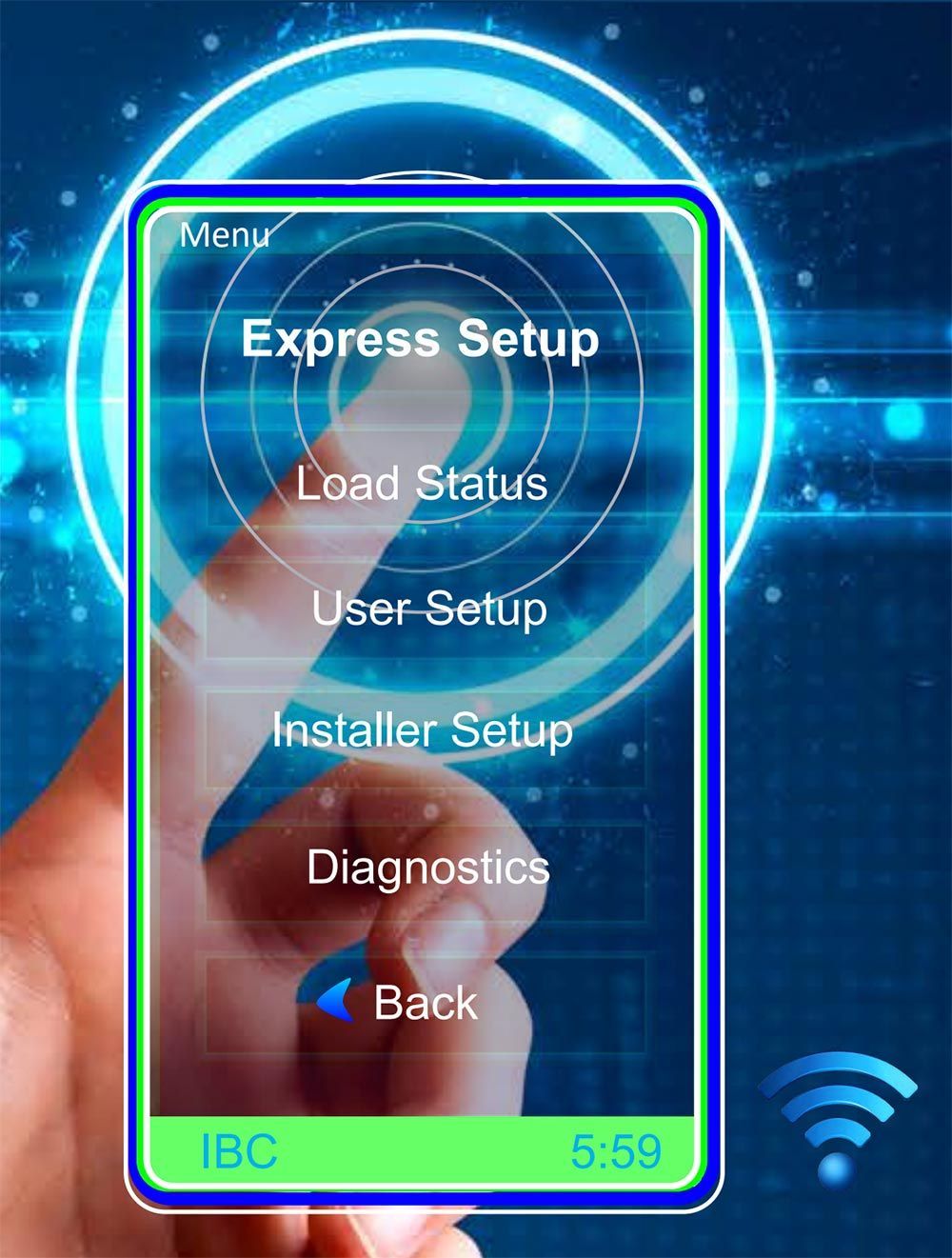

IBC Control at your fingertips
All SL Series G3 Boilers use our V-10 Touch Screen boiler control which features the latest in advance control technology and software.
Easy to setup and monitor with features like Express Setup, easier Diagnostics & Intuitive Alert System with plain English Warnings & Error Messages, no boiler has ever been easier to use!
MFZ Technology
MFZ, short for “Moisture Free Zone”, is IBC’s patented moisture management system featured on the SL 115/160/199 260/399. Residual latent heat can shorten the life of combustion components. Condensate in exchangers can encourage premature wear on the SS surfaces. MFZ eliminates those potential threats at the end of a heating cycle by purging the heat exchanger of moisture and latent heat. This ensures long life for the heat exchanger and all important combustion components.

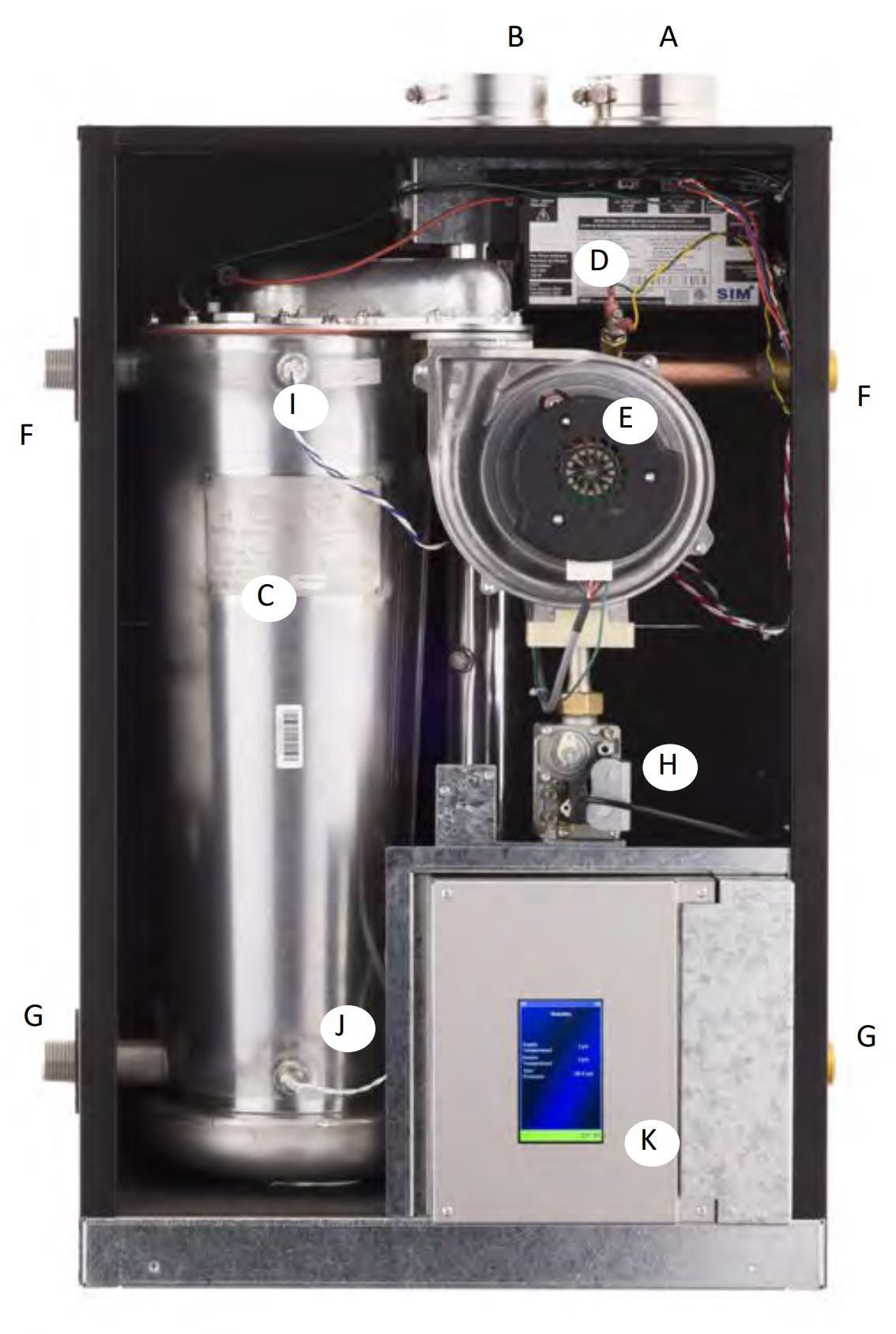

Interior – Residential Models
A) Combustion Air
B) Exhaust
C) Heat Exchanger
D) Ignition Module
E) Fan
F) Supply Pipe
G) Return Pipe
H) Gas valve
I) Supply Temp. Sensor
J) Return Temp. Sensor
K) V-10 Touch Screen
L) Air Intake Snorkel
M) Tridicator
Features – SL Series
Touch Control
- Express setup – program your boiler in seconds
- Remote monitoring & diagnostics
- Easy USB programmability
- Intuitive alert system with detailed error messages
- Visible flame current data for troubleshooting
- Simplified load pairing
- Optional true native BACnet
Easy to Install & Control
- With supply and return connection on both sides of 4 models, your boiler installation can’t get any easier
- PVC/CPVC/PPs approved
- Longest combined vent lengths – Up to 200 ft in 2” and 480 ft in 3”
- More common parts. With only 2 fans and a universal controller servicing all models just got a lot easier
- Fuel conversion kits included in residential models
- Easy to inspect Heat exchanger featuring a condensate draining system that cleans as it heats
More Built-In Features
- Built-in zone pump control – up to 4 zones. Replacing the need for external pump controls
- MFZ Technology: Patented moisture management system. Protects and ensures long life for all components in the boiler
- Turndown ratio of up to 10:1 means you have the power to heat your home in the coldest weather, yet reduce short cycling when the weather is mild
- Reverse flow detection
- Built-in outdoor reset control of water temperature
- Built-in CSA/UL approved low water cut-off and manual reset high limit
- Unmatched safety features
- Connect your IBC Indirect Water Tank directly to the boiler without a primary loop
- Easy to inspect Heat exchanger featuring a condensate draining system that cleans as it heats
Superior High Efficiency Heat Exchanger
- Efficiency up to 96% A.F.U.E. (SL 399G3 TE/CE 96%)
- One of the most advanced stainless steel fire tube boiler on the market today
- Increased efficiency: Custom baffling to ensure even heat transfer and long life
Commercial Features
- Multi-boiler communication. Easy boiler network setup. Up to 9.5 million Btu/h (24 boilers) without additional controls
- With 24 boilers turndown ratio is 240:1 = min. firing rate range is 40,000 Btu/h all the way up to 9.5 million Btu/h in 1000 Btu/h increments
- Ti option available on SL 40-399G3
- DDC Control 0-10 VDC or 4-20 mA without additional controls

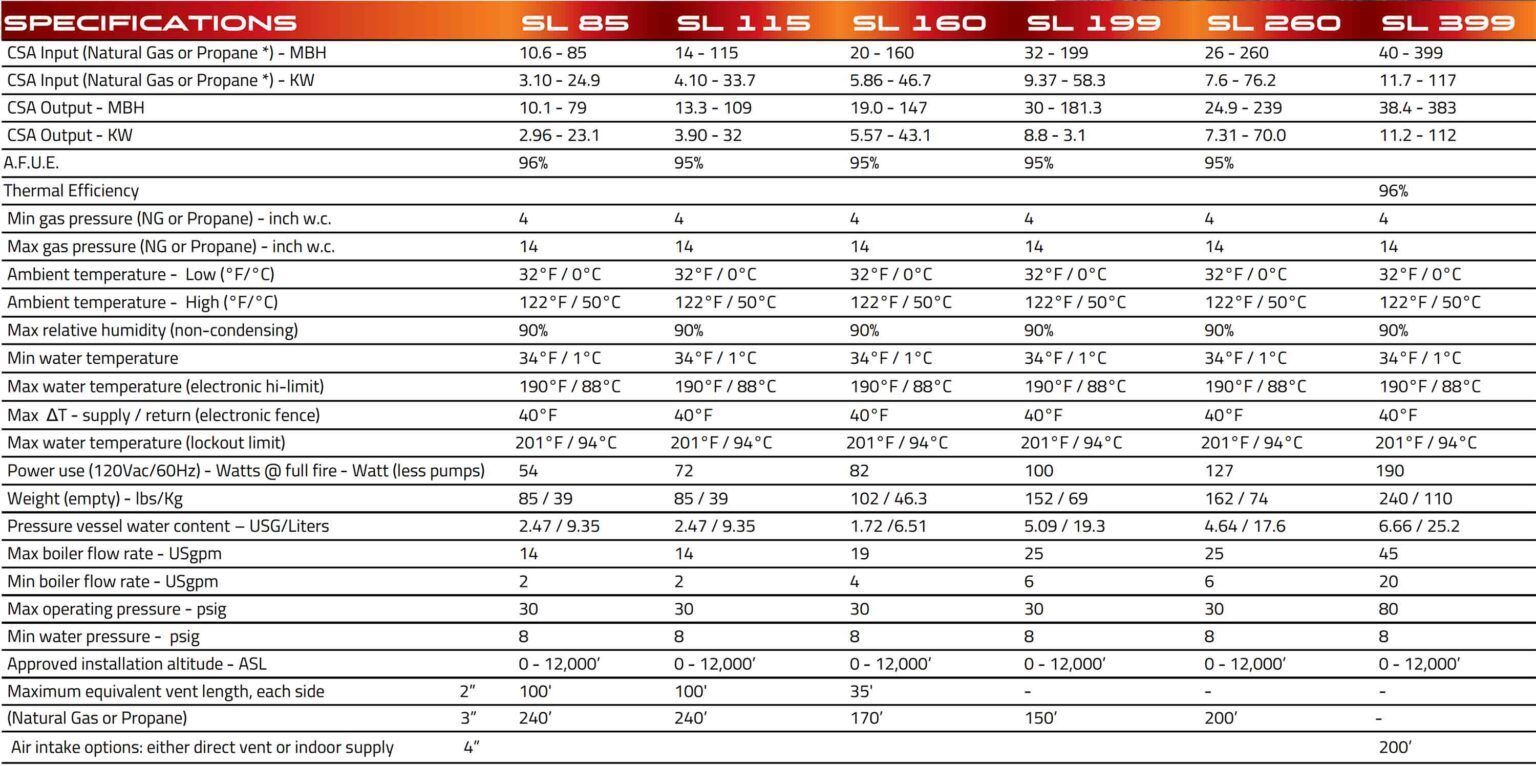

Technical Information – SL Series
