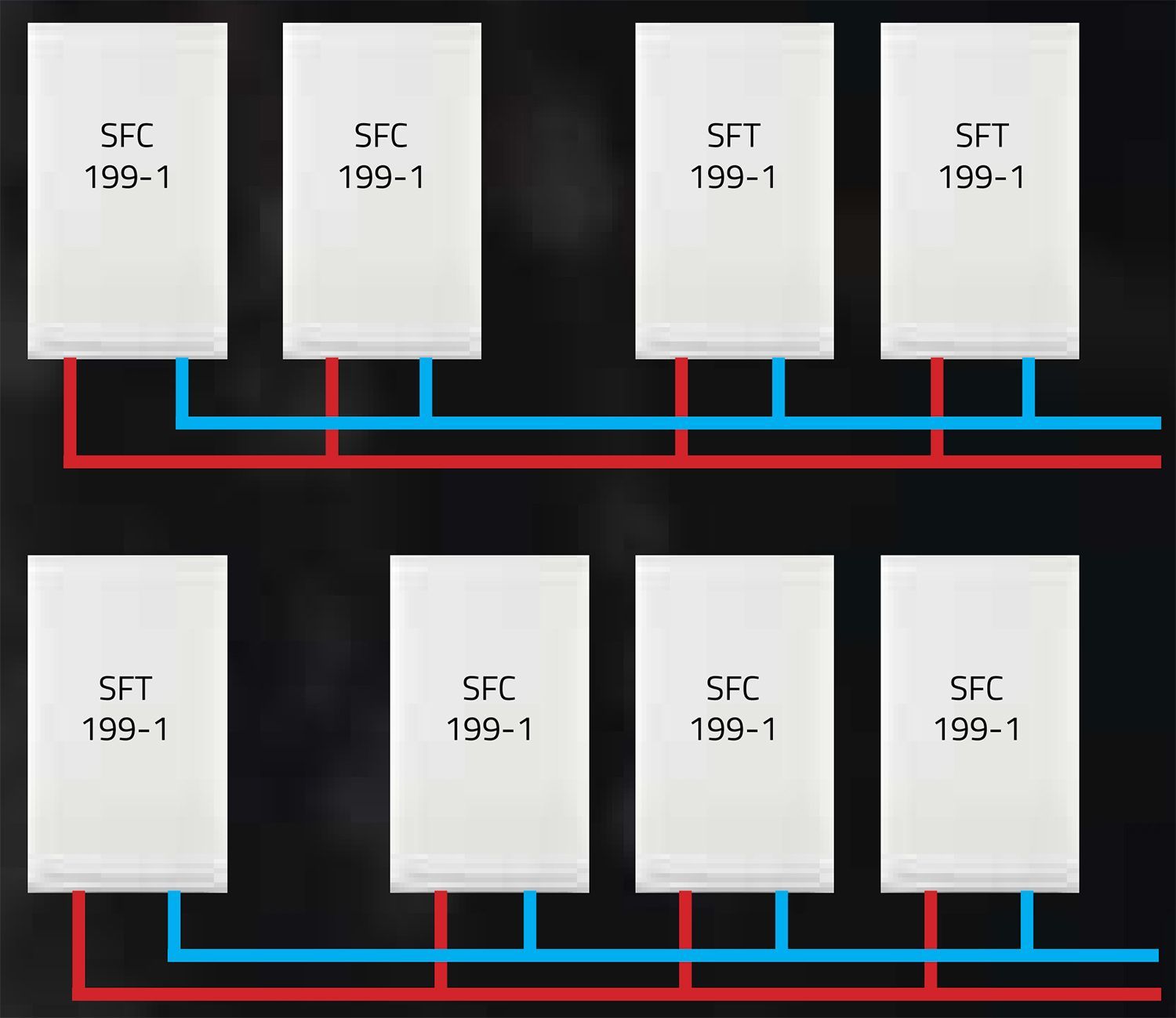

Unique Wireless Cascade Feature

The SuperflowTM SFC 160-1 / SFC199-1 now includes an innovative wireless cascade feature which allows up to 8 units to operate together for instances where a single SuperflowTM unit is not large enough. Create a cascade system using multiple SuperflowTM units to meet your domestic hot water and space heating needs with the added benefits of greater efficiency and redundancy. The SuperflowTM wireless cascade system is very easy to set up and flexible enough for your most demanding applications.

IBC SFC Series Combi Boiler | Diagram | Laureyns United | HVAC Installation, Services & Repair
IBC SFC Series Combi Boiler | Boiler Diagram | Laureyns United | HVAC Installation, Services & Repair

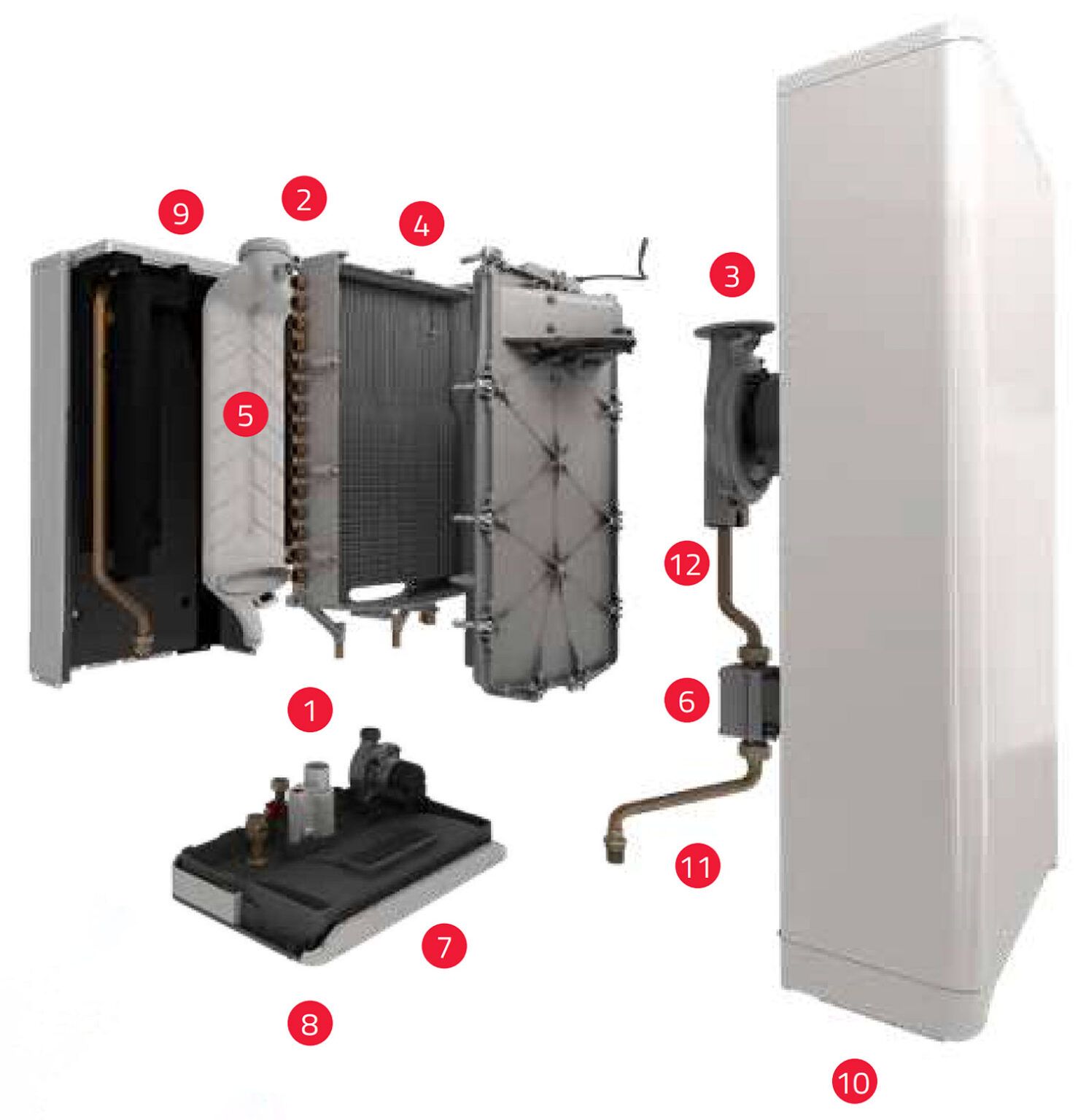

Easy Maintenance

  1. Pump (ECM)

  2. Exhaust Fitting

  3. Burner Fan

  4. Heat Exchanger

  5. Rear Flue Duct

  6. Gas Valve

  7. Touch Pad Control

  8. Condensate Trap

  9. Air Intake

  10. Cover

  11. Inlet Gas Line

  12. Outlet Gas Tub

SFC Series Combi Boiler

Simple

  • 2 independent copper waterways embedded in a cast aluminum block
  • Universal parts for all models • Intuitive touchscreen control display panel
  • Easy-access component layout for servicing
  • Built-in bypass valve on the SFC-199-1 to prevent temperature fluctuations
  • Factory installed domestic water strainer • 2” vent lengths up to 65’ each side
  • Extended pipe connection fittings
  • Built-in primary /boiler pump
  • Fuel conversion kits included
  • Sleek wall mounted space-saving design

Reliable

  • Proven patented single pass Labyrinth heat exchanger with dual fully integrated copper waterways
  • A total of 5 moving parts (Fan, Pump, Bypass Valve, Gas Valve, and Damper)
  • 30-year track record, 2 million installations worldwide
  • Innovative state-of-the-art electronic controller
  • Built-in bypass valve to prevent temperature fluctuations (SFC 199-1)
  • Almost no DHW flow reduction in hard water conditions
  • Compatible with standard Propylene Glycol
  • Will accept a 0-10 VDC signal from external control system
  • No need for a 3-way valve or secondary DHW plate heat exchanger

Efficient

  • Up to 95% AFUE with full ASME-rated heat exchanger
  • Wireless cascade up to 8 units. Multiple domestic and space heating cascade configurations available.
  • Advanced modulating temperature control
  • Outdoor reset technology increases efficiency by lowering the water temperature automatically
  • Qualifies for high efficiency energy rebates. Check your local utility for rebate opportunities.
  • Packaged with a high efficiency variable speed ECM pump
  • Up to 5.0 GPM continuous at a 70°F rise
  • Ultra low NOx. Low greenhouse gases.

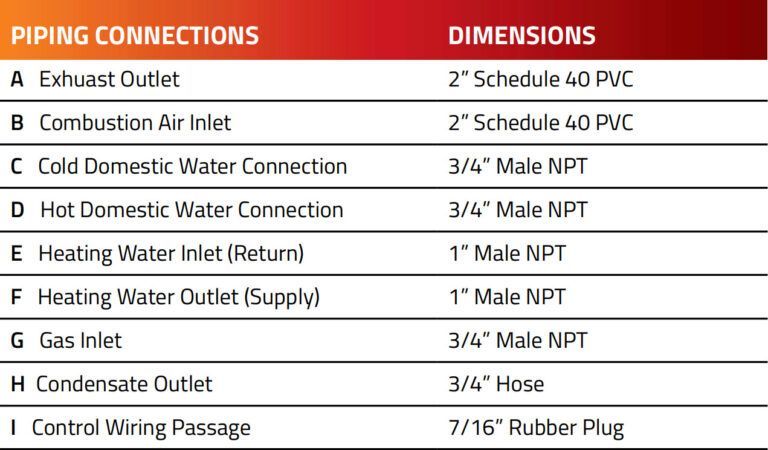

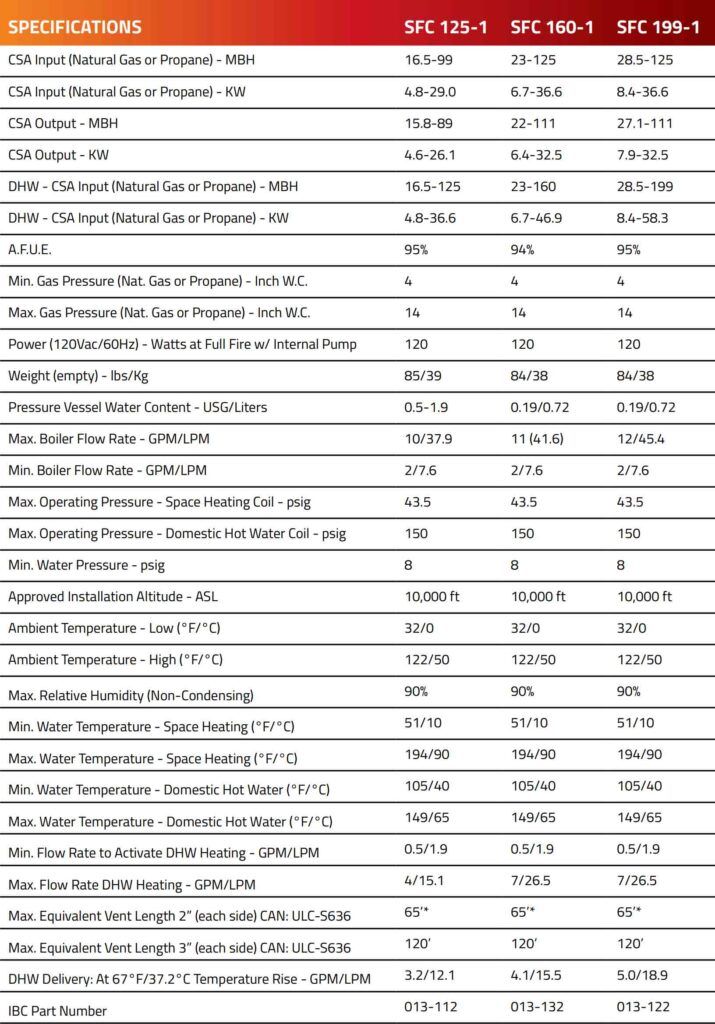

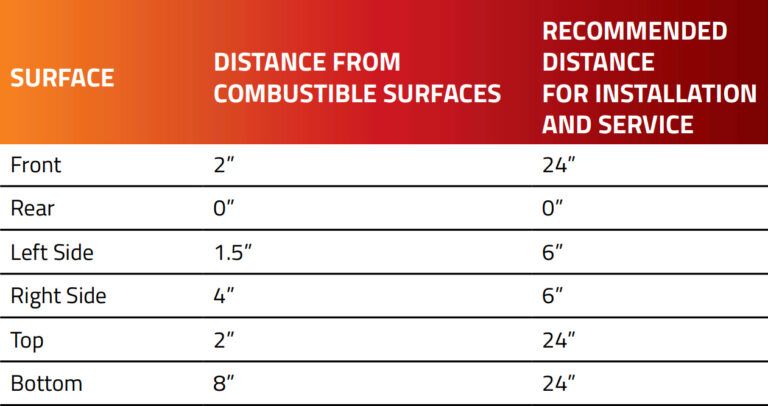

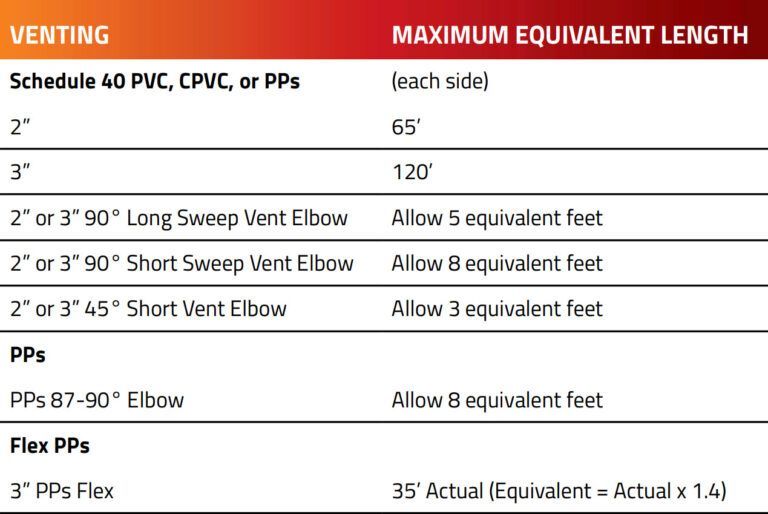

Technical Information – SFC Series

IBC SFC Series Combi Boiler | Boiler Technical Information Chart | Laureyns United | HVAC Installation, Services & Repair
IBC SFC Series Combi Boiler | Boiler Technical Information Chart | Laureyns United | HVAC Installation, Services & Repair
IBC SFC Series Combi Boiler | Boiler Technical Information Chart | Laureyns United | HVAC Installation, Services & Repair
IBC SFC Series Combi Boiler | Boiler Technical Information Chart | Laureyns United | HVAC Installation, Services & Repair
