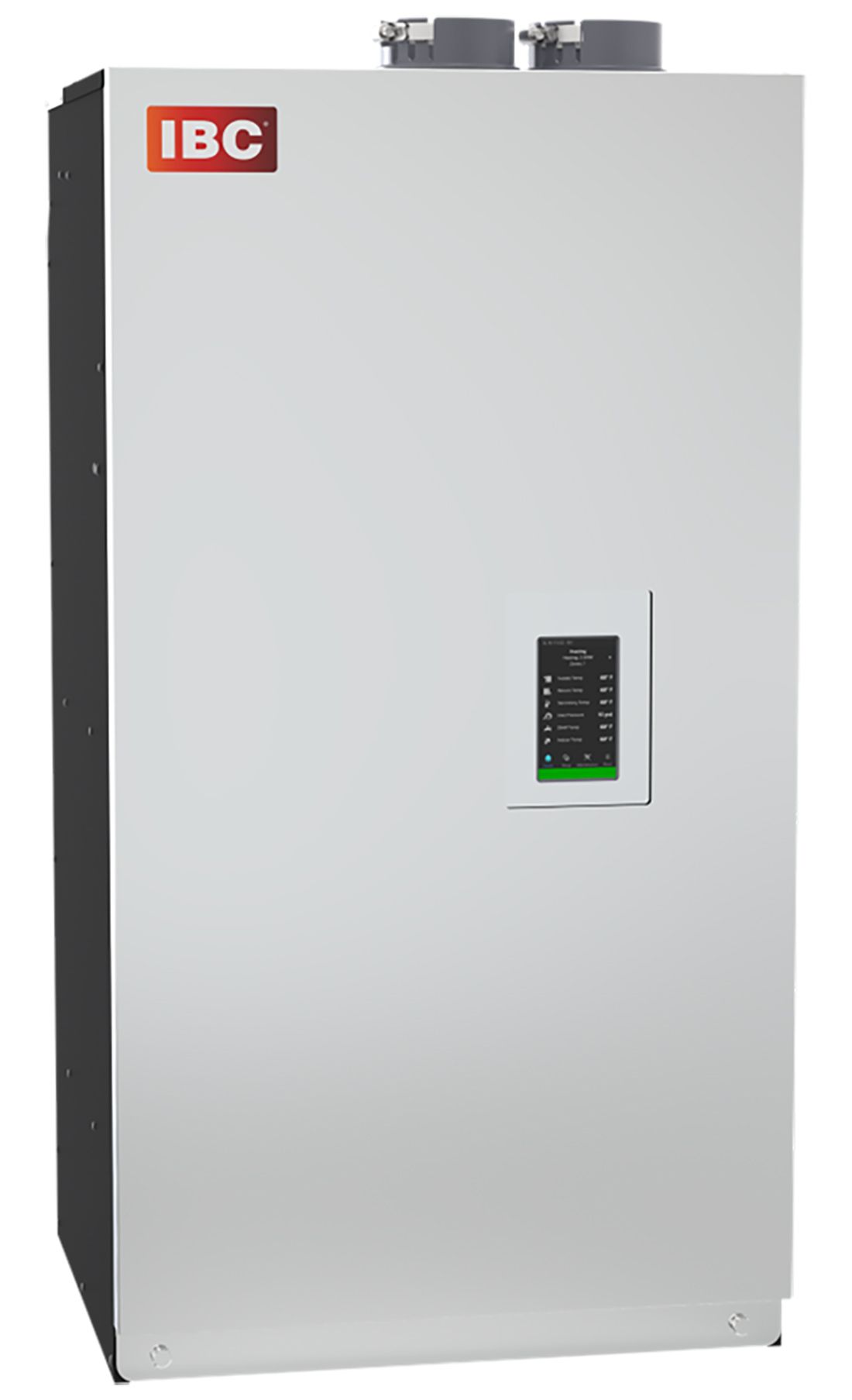

IBC CX Series Combi Boiler

IBC Boilers Logo

IBC SL Series Boiler

IBC Boilers Logo

IBC Control at your fingertips

All CXTM Combi Boilers use our intuitive V-10 Touch Screen boiler controller featuring the latest in advance control technology and software.

Easy to set up and monitor. Features include: Express Setup, Load Combining and Zoning, Real-Time Monitoring of DHW Temperature, Diagnostics & Intuitive Alert System with plain English Warnings & Error Messages. Cascade up to 4 units. No boiler has ever been easier to use!

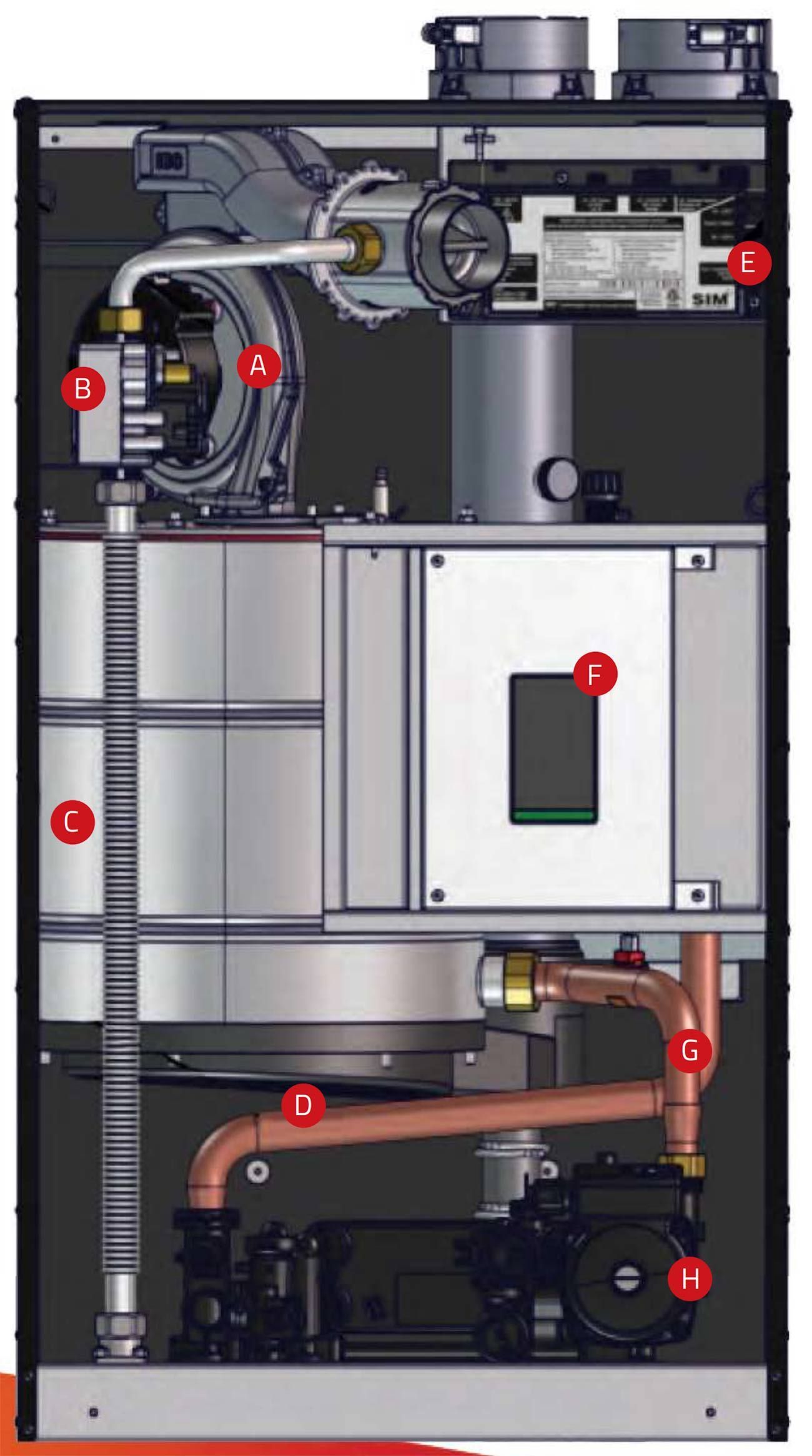

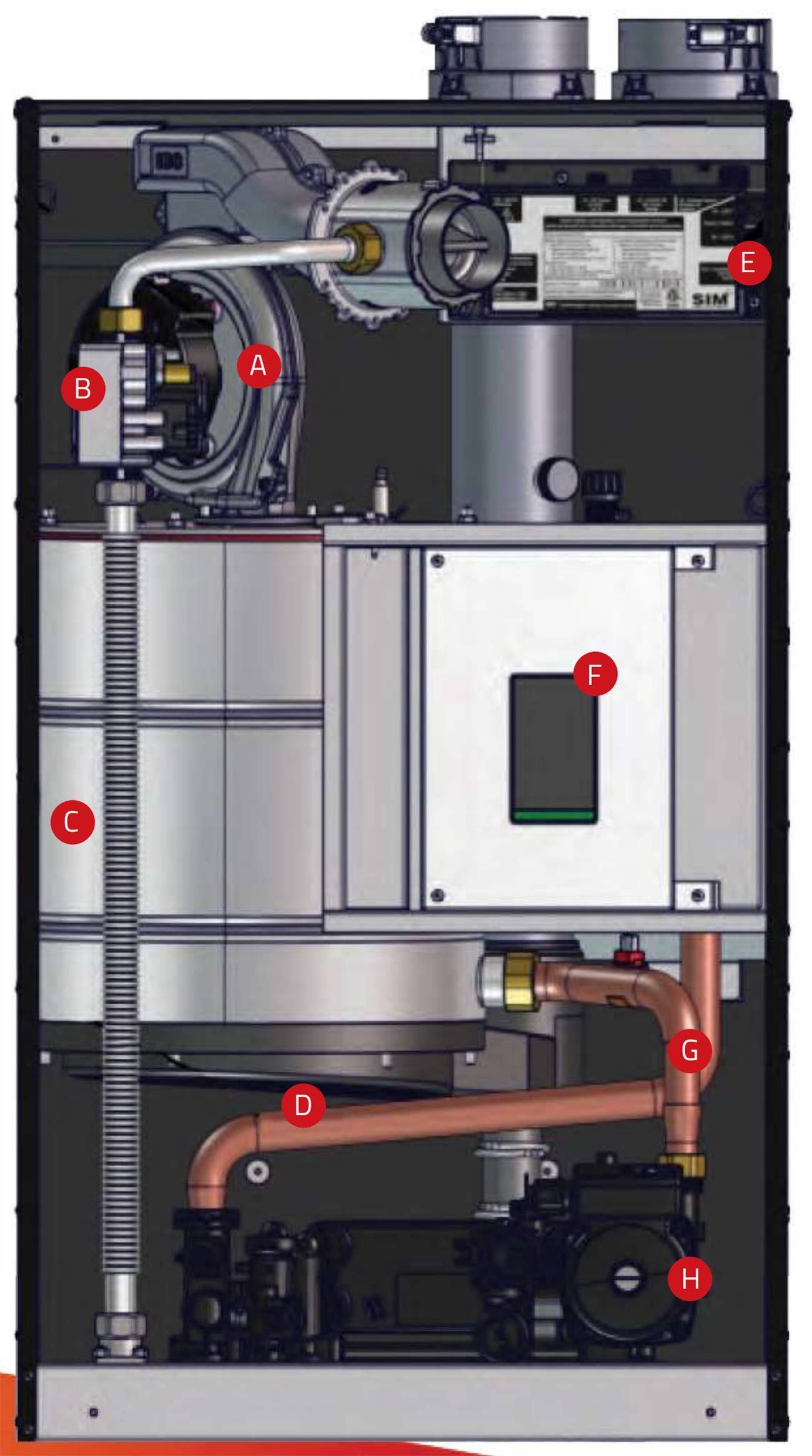

Interior

A) Fan

B) Gas Valve

C) Boiler Heat Exchanger

D) Supply Water Pipe

E) Safety Ignition Module (SIM+)

F) Controller

G) Return Water Pipe

H) DHW Heat Exchanger & Pump

IBC CX Series Combi Boiler | Boiler Diagram | Laureyns United | HVAC Installation, Services & Repair

New V-10 Control Interface

  • Remote Monitoring & Diagnostics
  • Easy USB programmability
  • Instant Visibility – Built-in warnings on the controller
  • Real-time monitoring of DHW temperature
  • Intuitive Alert System with detailed error messages
  • Visible flame current data for troubleshooting
  • Load combining
  • Cascade up to 4 units

More Built-in Features

  • Built-in 4 zone pump or valve control
    • In addition to the primary control – 5 pumps total
    • Replaces the need for external zone control
  • Built-in factory wired primary pump
  • Built-in combi block for DHW supply and ease of service from front of unit
  • MFZ Technology: Patented moisture management system. Protects and ensures long life for all boiler components
  • Built-in outdoor reset control of water temperature
  • Built-in CSA/UL approved low water cut-off and manual MAXIMUM PERFORMANCE reset high limit

Maximum Performance

  • 95% A.F.U.E. – Reduce operating costs and heat your home faster
  • Full boiler capacity available for both DHW and space heating
  • State-of-the-art, ASME, 439 grade, SS firetube HX
  • Brazed plate HX for DHW production
  • Turndown ratio 10:1 means you have the power to heat your home during the coldest weather, yet reduce short cycling when the weather is mild
  • North American built. All CXTM models are designed, engineered and assembled in Canada

Easy To Install And Service

  • Universal parts. With only one fan and one controller, servicing all CXTM models just got a lot easier.
  • All combi block components can be easily replaced individually
  • PVC/CPVC/PPs approved
  • Vent lengths up to 50 ft. with 2” and 170 ft. with 3”
  • Easy to inspect HX featuring a condensate draining system that cleans as it heats

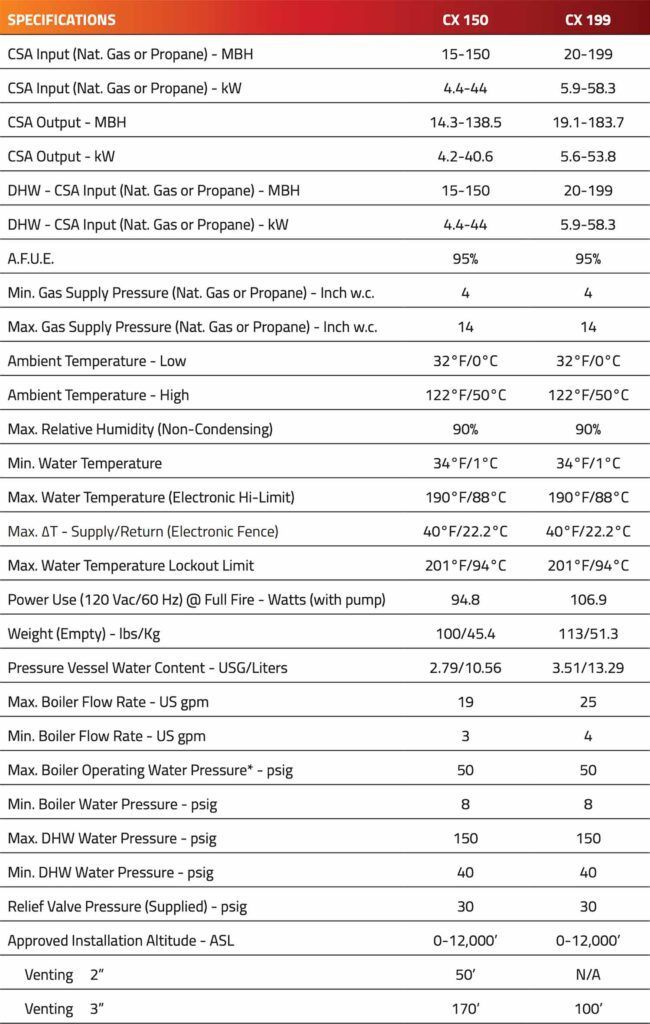

Technical Information – CX Series Combi

IBC CX Series Combi Boiler | Boiler | Laureyns United | HVAC Installation, Services & Repair
IBC CX Series Combi Boiler | Boiler Technical Information Chart | Laureyns United | HVAC Installation, Services & Repair
